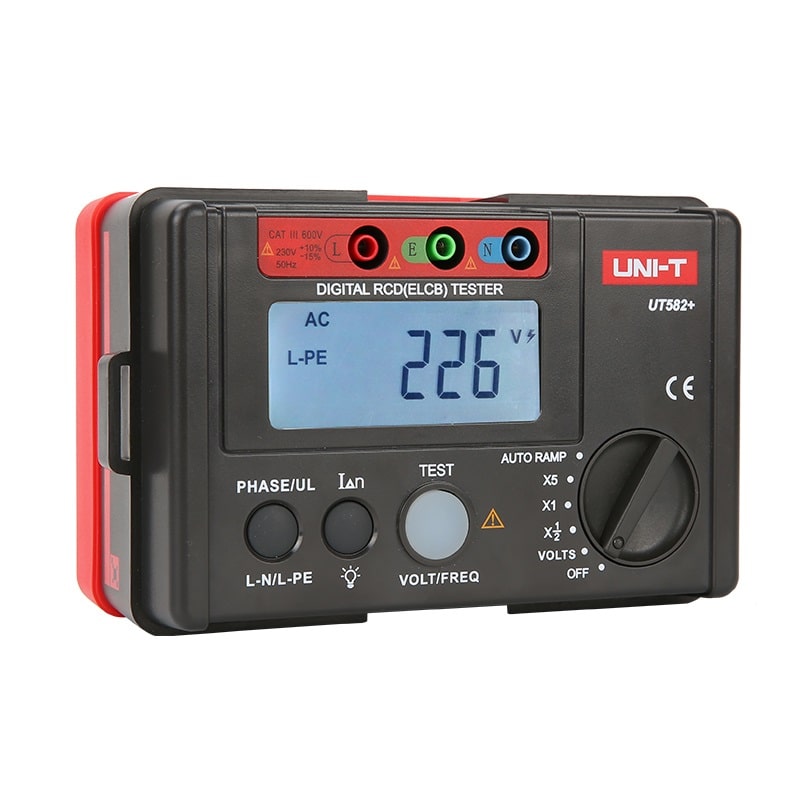

UT582+ terutama digunakan untuk mendeteksi apakah RCD di sirkuit dapat dipicu secara normal. Ini hanya cocok untuk sirkuit fase tunggal dengan rentang tegangan suplai 195V~253V. Rentang pengukuran tegangannya adalah 30V~600V, 45Hz ~65Hz.

FITUR UNI-T UT582+

SPESIFIKASI UNI-T UT582+

Specifications		Range		UT582+
RCD measurement	Range setting	Rated operating current	Trip time
	X 1/2	10mA/20mA/30mA/100mA/300mA/500mA	2000ms	-10%~0%
	X 1	10mA/20mA/30mA/100mA/300mA	1000ms	0%~10%
		500mA	300ms	0%~10%
	X 5	10mA/20mA/30mA	40ms	0%~10%
	AUTO RAMP	10mA/20mA/30mA/100mA/300mA/500mA	300ms	-10%~10%
	Trip time accuracy	±(2%+2)
	Operating voltage (Freq.)	195V~253V
Voltage measurement	Voltage range	30~600V
	Frequency	45Hz~65Hz
	Resolution	1V
	Accuracy	±(3%+3)
Features
Display count	999
Power oﬀ gear	√
Low battery indication	<7.2V
APO	Auto power oﬀ fuction
LCD backlight	√
Data hold	√
Phase angle selection	0° and 180°
Connections check	Simultaneously test the trip time and trip current
AUTO RAMP	√
Disconnect buzzer	√
Over-range display	OL
Fused	√
Mis-operation buzzer	√
Power oﬀ buzzer	√
Full icon display	√
Compliance standard	IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2
Lead sequence check	LCD
General Characteristics
Power	1.5V battery (LR6) x 6
Display	71mm x 34mm
Product color	Red and grey
Product net weight	400g
Product size	160mm x 100mm x 71mm
Standard accessories	Test line, carrying bag, elastic strap
Standard individual packing	Gift box, English manual
Standard quantity per carton	5pcs
Standard carton easurement	425mm x 280mm x 180mm
Standard carton gross weight	4.9kg
