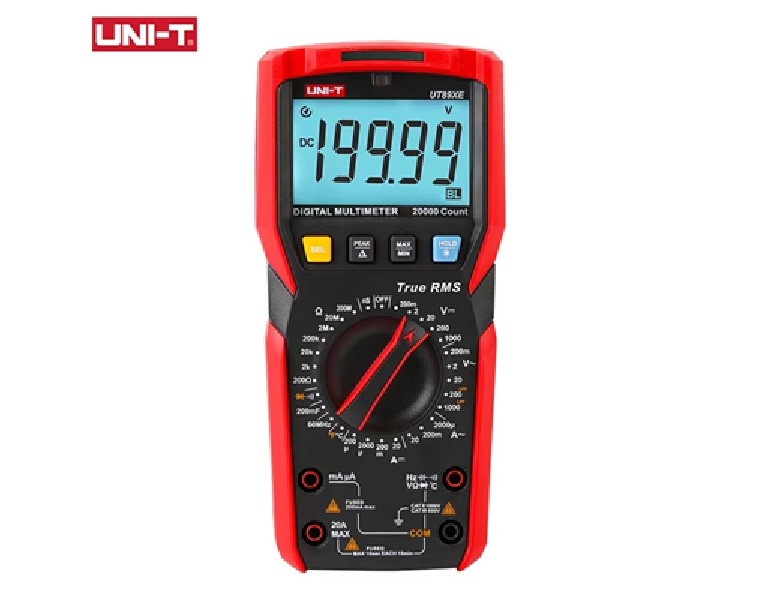

UT89XE adalah multimeter transmisi manual dengan nilai efektif sebenarnya sebanyak 20.000 digit, resolusi tinggi, pengukuran akurat, dan fungsi lengkap. Selain fungsi konvensional, fungsi pengukuran konduktivitas (rentang 0,1-200nS, resistansi terkonversi adalah 5Ω-10GΩ) ditambahkan, yang memperluas rentang pengukuran resistansi dan mengisi kekurangan yang menyebabkan resistansi besar tidak dapat diukur; produk ini sesuai dengan Desain tingkat keamanan CAT Il 1000V/CAT III 600V, dengan pengukuran tegangan berlebih, peringatan arus berlebih, semua roda gigi dilengkapi dengan perangkat perlindungan deteksi kesalahan tegangan tinggi.
FITUR UNI-T UT89XE
- CAT II 1000V/CATIII 600V
- Jumlah tampilan: 6000/20000
- True RMS
- Low Pass Filter (LPF)
- Pengukuran tegangan AC/DC 1000V
- Pengukuran arus AC dan DC 20A
- Pengukuran resistansi 200MΩ / kapasitansi 200000uF
- Rentang frekuensi AC: 45~1000Hz
- Konduktansi: 200nS
- Rentang pengukuran suhu: -10~1000.0℃/-40 ~ 1832℉
- Nilai puncak/Nilai relatif
- MAKS/MIN
- Laju pengambilan sampel: 3 kali/detik
- Alarm suara/visual
- Indikator pengisian kapasitor
- Desain ergonomis
- Injeksi ganda molding
- Lampu latar otomatis
- Daya mati otomatis/lampu latar otomatis
- Penyimpanan data
- Keandalan anti jatuh 1 meter
SPESIFIKASI UNI-T UT89XE
| Specifications | Range | UT89X | UT89XD | UT89XE |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) | ±(0.5%+2) | |
| 200mV/2V/20V/200V/1000V | ±(0.05%+5) | |||
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) | ±(0.8%+5) | |
| 200mV/2V/20V/200V/1000V | ±(0.8%+25) | |||
| DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) | ||
| 60μA/6mA/60mA/600mA/20A | ±(0.8%+8) | |||
| 2000μA/200mA/20A | ±(0.5%+4) | |||
| AC current (A) | 60mA/600mA/20A | ±(1%+12) | ±(1%+12) | |
| 2000uA/200mA/20A | ±(1.5%+15) | |||
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) | ±(0.8%+3) | |
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.4%+5) | |||
| Capacitance (F) | 100mF | ±(2.5%+20) | ±(2.5%+20) | |
| 200mF | ±(4%+50) | |||
| Conductance (ns) | 200nS | ±(1.2%+50) | ||
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) | ±(0.1%+4) | |
| 60MHz | ±(0.1%+3) | |||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | ±(2%+5) | |
| Temperature (℃) | -40℃~1000℃ | ±(2%+4) | ±(1%+10) | |
| Temperature (℉) | -40℉~1832℉ | ±(2%+8) | ±(1.5%+10) | |
| Live wire test | √ | |||
| LED test | 12V | |||
| Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV | LED/hFE/NCV | √ |
| Transistor Hfe | √ | √ | ||
| Dual range NCV test | √ | √ | ||
| Flashlight | √ | √ | ||
| MAX/MIN | √ | |||
| Peak Hold | √ | |||
| LPF measurement | √ | |||
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 4 | |||
| Display | 61mm x 36mm | |||
| Product net weight | 345g | |||
| Product size | 189mm x 89mm x 53mm | |||

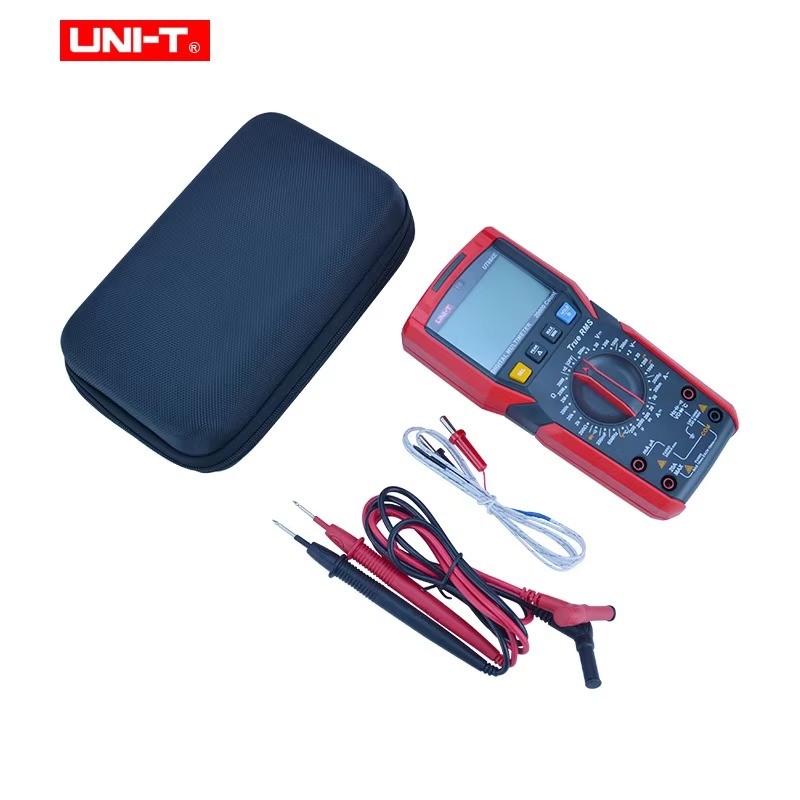

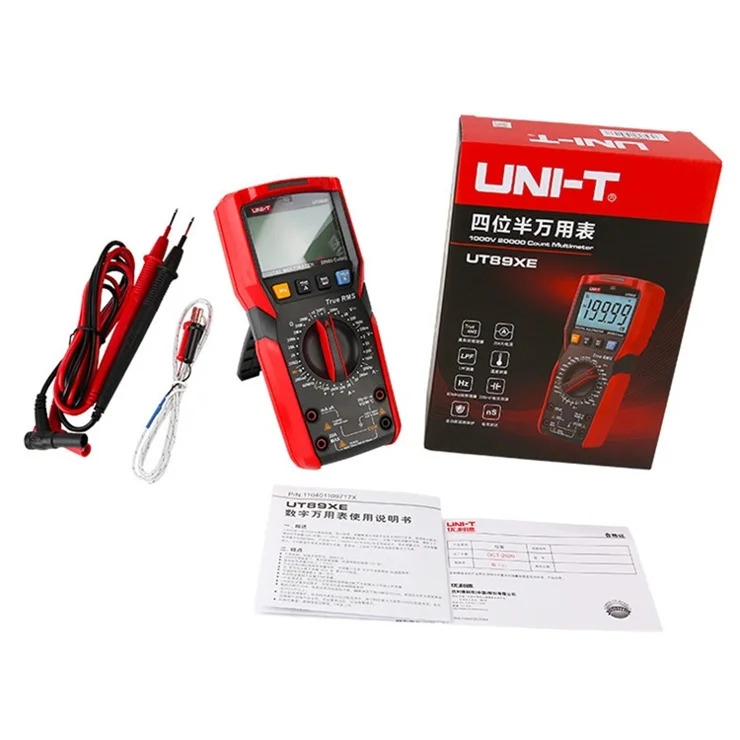

| Standard accessories | Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual | |||
| Standard individual packing | Gift box | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | 450mm x 355mm x 340mm | |||
| Standard carton gross weight | 12.2kg | |||
